Model MRN-200
MESSAGE ROUTING NODE
MRN-200
The Message Routine Node (MRN) is an EVI product which allows a MODCOMP
computer to participate in a TCP/IP LAN or WAN environment. |
 |
|
The MRN uses the 802.3/Ethernet Multivendor LAN Standard. This will
provide modular growth, which enables you to expand your computing
resources. The MRN is flexible enough to accomodate a variety of
industry standards (ISO or DNA).
|
The MRN provides both TCP and UDP communications services. A task on the
MODCOMP can communicate with a task executing on a processor connected to
the Ethernet LAN. The MODCOMP task can participate is either a server or
client mode. The MRN will support up to fifteen concurrent LAN
connections.
|

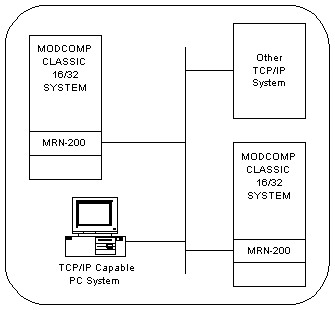

| Figure 1, Typical MRN Configuration | |
The MRN also provides an internal protocol for diagnostics and
configuration information from the MRN. This includes a PING command
which may be used to test a network path from the MRN to another system.
|
SOFTWARE (SUPPLIED)
|
MODCOMP: |
|
|
|
MRN Symbiont (16 or 32 bit) |
|
|
Interface Routines (FORTRAN) |
|
MS-DOS®: |
|
|
|
TCP/IP Kernel |
|
|
EVI 5316 Driver |
|
|
MRN-200 Application Software |
|
HARDWARE (SUPPLIED)
|
MRN-200: |
|
|
|
Rack mountable industrial computer equipped with an EVI 5316
interface card and an ethernet card |
|
|
EVI 5316 Cable |
|
| |
SOFTWARE (Prerequisites)
|
Standard MODCOMP 4805 Handler (MAX IV/MAX 32) |
|
|
HARDWARE (Prerequisites)
|
MODCOMP 16 or 32 Bit System with a 4805 parallel interface controller |
|
|

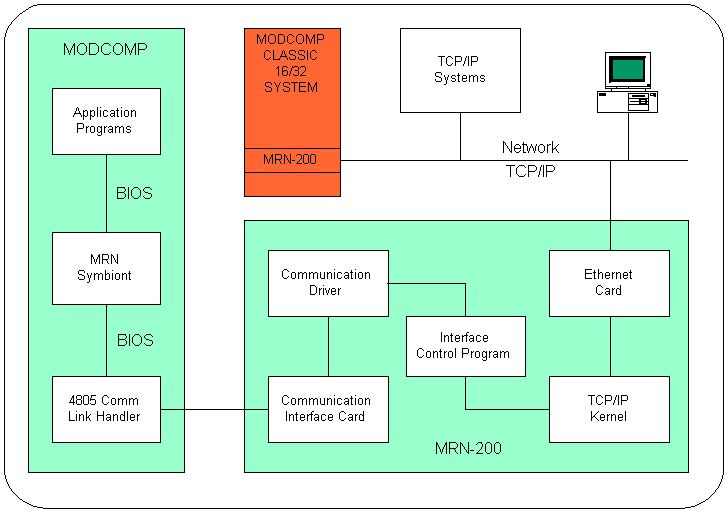

Figure 2, MRN Data Routing
MODCOMP and CLASSIC are registered trademarks of Modular Computer Systems, Inc.
MAX IV and MAX 32 are trademarks of Modular Computer Systems, Inc.
MS-DOS is a registered trademark of Microsoft Corporation
MRN-200 is a trademark of Electronic Visions, Inc.
